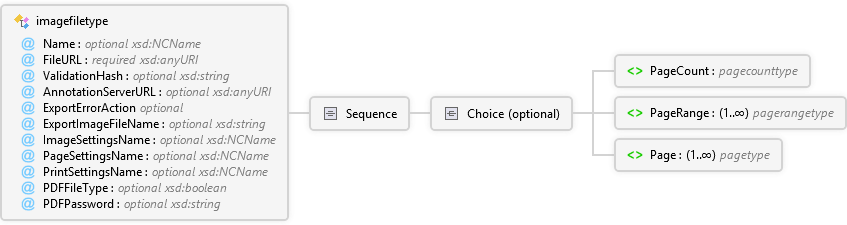

imagefiletype Complex Type

An image file consists of a file URI and other attributes and elements that control what pages are displayed and how they are used.

imagefiletype

An image file consists of a file URI and other attributes and elements that control what pages are displayed and how they are used.

Name optional xsd:NCName

The Name attribute gives the first page in the image file a name that can be used in the table of contents or the initial page name.

FileURL required xsd:anyURI

The URI for the image file.

ValidationHash optional xsd:string

The ValidationHash attribute contains a hash string that is used to validate the contents of the image file. If the ValidationHash attribute is defined and does not match the contents of the image file, an error message will be displayed instead of the pages from the image file.

AnnotationServerURL optional xsd:anyURI

This annotation server will be used for all images in the image file, unless a page has an image file server specified below this level.

ExportErrorAction optional Restriction of xsd:string

The ExportErrorAction attribute specifies what happens if an image can't be retrieved during exporting.

ExportImageFileName optional xsd:string

This filename template will be used to name this file if exported.

ImageSettingsName optional xsd:NCName

This named entry in the image settings list will be used for all images in the image file, unless a page has an image settings name specified below this level.

PageSettingsName optional xsd:NCName

This named entry in the page settings list will be used for all images in the image file, unless a page has an page settings name specified below this level.

PrintSettingsName optional xsd:NCName

This named entry in the print settings list will be used for all images in the image file, unless a page has an print settings name specified below this level.

PDFFileType optional xsd:boolean

This specifies that the image file is a PDF file. This is reserved for future use and should not be specified even if the file is a PDF file.

PDFPassword optional xsd:string

This password will be used to open the image file if the image file is a password protected PDF file.

Sequence

Choice optional

PageCount pagecounttype Complex Type

A PageCount element specifies the number of pages to use from an image file.

Count required xsd:positiveInteger

The page count is an integer greater than or equal to 1.

PageRange 1..∞ pagerangetype Complex Type

A PageRange element specified a list of specific pages to use from an image file.

Range required Restriction of xsd:string

The page range is represented as a set of continuous page ranges, with each continuous page range either increasing or decreasing.

Name optional xsd:NCName

The Name attribute gives the first page in the range a name that can be used in the table of contents or the initial page name

AnnotationFileURL optional xsd:anyURI

This annotation file will be used by all images in the page range. This URL must be for a file and not a server!

AnnotationServerURL optional xsd:anyURI

This annotation server will be used for all images in the page range.

ImageSettingsName optional xsd:NCName

This named entry in the image settings list will be used for all images in the page range.

PageSettingsName optional xsd:NCName

This named entry in the page settings list will be used for all images in the page range.

PrintSettingsName optional xsd:NCName

This named entry in the print settings list will be used for all images in the page range.

Page 1..∞ pagetype Complex Type

A Page element specified a specific page to use from an image file.

Name optional xsd:NCName

The Name attribute gives this page a name that can be used in the table of contents or the initial page name.

PageNumber required xsd:positiveInteger

The page number to use from the image file. If this page is outside the range of pages in the image file, this page will be added as an error page.

ThumbnailBitmap optional xsd:base64Binary

Reserved.

AnnotationFileURL optional xsd:anyURI

This annotation file will be used by the image page. This URL must be for a file and not a server!

AnnotationServerURL optional xsd:anyURI

This annotation server will be used for this page.

ImageSettingsName optional xsd:NCName

This named entry in the image settings list will be used for this page.

PageSettingsName optional xsd:NCName

This named entry in the page settings list will be used for this page.

PrintSettingsName optional xsd:NCName

This named entry in the print settings list will be used for this page.

ImageFile Element

Name	Type	Use	Description
Name	xsd:NCName	optional	The Name attribute gives the first page in the image file a name that can be used in the table of contents or the initial page name.
FileURL	xsd:anyURI	required	The URI for the image file.
ValidationHash	xsd:string	optional	The ValidationHash attribute contains a hash string that is used to validate the contents of the image file. If the ValidationHash attribute is defined and does not match the contents of the image file, an error message will be displayed instead of the pages from the image file.
AnnotationServerURL	xsd:anyURI	optional	This annotation server will be used for all images in the image file, unless a page has an image file server specified below this level.
ExportErrorAction	Restriction of xsd:string	optional	The ExportErrorAction attribute specifies what happens if an image can't be retrieved during exporting.
ExportImageFileName	xsd:string	optional	This filename template will be used to name this file if exported.
ImageSettingsName	xsd:NCName	optional	This named entry in the image settings list will be used for all images in the image file, unless a page has an image settings name specified below this level.
PageSettingsName	xsd:NCName	optional	This named entry in the page settings list will be used for all images in the image file, unless a page has an page settings name specified below this level.
PrintSettingsName	xsd:NCName	optional	This named entry in the print settings list will be used for all images in the image file, unless a page has an print settings name specified below this level.
PDFFileType	xsd:boolean	optional	This specifies that the image file is a PDF file. This is reserved for future use and should not be specified even if the file is a PDF file.
PDFPassword	xsd:string	optional	This password will be used to open the image file if the image file is a password protected PDF file.

<xsd:complexType name="imagefiletype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>An image file consists of a file URI and other attributes and elements that control what pages are displayed and how they are used.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:annotation>
      <xsd:documentation>An image file has pages that are either unspecified, or specified as a count, range, or individually.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice minOccurs="0">
      <xsd:annotation>
        <xsd:documentation>There can be one PageCount element, or one or more of either PageRange or Page elements. PageRange and Page elements can not be mixed in one ImageFile element. To mix, use two or more ImageFile elements specifying the same image file URL.</xsd:documentation>
      </xsd:annotation>
      <xsd:element name="PageCount" type="pagecounttype">
        <xsd:annotation>
          <xsd:documentation>A PageCount element specifies the number of pages to use from an image file.</xsd:documentation>
        </xsd:annotation>
      </xsd:element>
      <xsd:element name="PageRange" type="pagerangetype" maxOccurs="unbounded">
        <xsd:annotation>
          <xsd:documentation>A PageRange element specified a list of specific pages to use from an image file.</xsd:documentation>
        </xsd:annotation>
      </xsd:element>
      <xsd:element name="Page" type="pagetype" maxOccurs="unbounded">
        <xsd:annotation>
          <xsd:documentation>A Page element specified a specific page to use from an image file.</xsd:documentation>
        </xsd:annotation>
      </xsd:element>
    </xsd:choice>
  </xsd:sequence>
  <xsd:attribute name="Name" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>The Name attribute gives the first page in the image file a name that can be used in the table of contents or the initial page name.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="FileURL" type="xsd:anyURI" use="required">
    <xsd:annotation>
      <xsd:documentation>The URI for the image file.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ValidationHash" type="xsd:string" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ValidationHash attribute contains a hash string that is used to validate the contents of the image file. If the ValidationHash attribute is defined and does not match the contents of the image file, an error message will be displayed instead of the pages from the image file.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="AnnotationServerURL" type="xsd:anyURI" use="optional">
    <xsd:annotation>
      <xsd:documentation>This annotation server will be used for all images in the image file, unless a page has an image file server specified below this level.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ExportErrorAction" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ExportErrorAction attribute specifies what happens if an image can't be retrieved during exporting.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:annotation>
        <xsd:documentation>The attribute value is set to one of the following action names.</xsd:documentation>
      </xsd:annotation>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="Ignore">
          <xsd:annotation>
            <xsd:documentation>This value causes exporting to ignore any errors retrieving this file and simply leave it out of the exported image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Cancel">
          <xsd:annotation>
            <xsd:documentation>This value causes exporting to immediately cancel if there are any errors retrieving this file.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="ExportImageFileName" type="xsd:string" use="optional">
    <xsd:annotation>
      <xsd:documentation>This filename template will be used to name this file if exported.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ImageSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the image settings list will be used for all images in the image file, unless a page has an image settings name specified below this level.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PageSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the page settings list will be used for all images in the image file, unless a page has an page settings name specified below this level.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PrintSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the print settings list will be used for all images in the image file, unless a page has an print settings name specified below this level.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PDFFileType" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>This specifies that the image file is a PDF file. This is reserved for future use and should not be specified even if the file is a PDF file.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PDFPassword" type="xsd:string" use="optional">
    <xsd:annotation>
      <xsd:documentation>This password will be used to open the image file if the image file is a password protected PDF file.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
</xsd:complexType>
