pagetype Complex Type

A page element consists of a page number and other optional attributes.

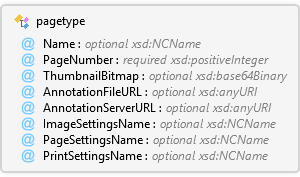

pagetype

A page element consists of a page number and other optional attributes.

Name optional xsd:NCName

The Name attribute gives this page a name that can be used in the table of contents or the initial page name.

PageNumber required xsd:positiveInteger

The page number to use from the image file. If this page is outside the range of pages in the image file, this page will be added as an error page.

ThumbnailBitmap optional xsd:base64Binary

Reserved.

AnnotationFileURL optional xsd:anyURI

This annotation file will be used by the image page. This URL must be for a file and not a server!

AnnotationServerURL optional xsd:anyURI

This annotation server will be used for this page.

ImageSettingsName optional xsd:NCName

This named entry in the image settings list will be used for this page.

PageSettingsName optional xsd:NCName

This named entry in the page settings list will be used for this page.

PrintSettingsName optional xsd:NCName

This named entry in the print settings list will be used for this page.

Page Element

Name	Type	Use	Description
Name	xsd:NCName	optional	The Name attribute gives this page a name that can be used in the table of contents or the initial page name.
PageNumber	xsd:positiveInteger	required	The page number to use from the image file. If this page is outside the range of pages in the image file, this page will be added as an error page.
ThumbnailBitmap	xsd:base64Binary	optional	Reserved.
AnnotationFileURL	xsd:anyURI	optional	This annotation file will be used by the image page. This URL must be for a file and not a server!
AnnotationServerURL	xsd:anyURI	optional	This annotation server will be used for this page.
ImageSettingsName	xsd:NCName	optional	This named entry in the image settings list will be used for this page.
PageSettingsName	xsd:NCName	optional	This named entry in the page settings list will be used for this page.
PrintSettingsName	xsd:NCName	optional	This named entry in the print settings list will be used for this page.

<xsd:complexType name="pagetype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>A page element consists of a page number and other optional attributes.</xsd:documentation>
  </xsd:annotation>
  <xsd:attribute name="Name" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>The Name attribute gives this page a name that can be used in the table of contents or the initial page name.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PageNumber" type="xsd:positiveInteger" use="required">
    <xsd:annotation>
      <xsd:documentation>The page number to use from the image file. If this page is outside the range of pages in the image file, this page will be added as an error page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ThumbnailBitmap" type="xsd:base64Binary" use="optional">
    <xsd:annotation>
      <xsd:documentation>Reserved.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="AnnotationFileURL" type="xsd:anyURI" use="optional">
    <xsd:annotation>
      <xsd:documentation>This annotation file will be used by the image page. This URL must be for a file and not a server!</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="AnnotationServerURL" type="xsd:anyURI" use="optional">
    <xsd:annotation>
      <xsd:documentation>This annotation server will be used for this page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ImageSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the image settings list will be used for this page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PageSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the page settings list will be used for this page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PrintSettingsName" type="xsd:NCName" use="optional">
    <xsd:annotation>
      <xsd:documentation>This named entry in the print settings list will be used for this page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
</xsd:complexType>
