TOCEntry Element
Accusoft Prizm Viewer List File Schema > tocentrytype Complex Type : TOCEntry Element
Description
A TOC entry element can contain another TOC entry element as a child.
Namespace (none)
Type
tocentrytype Complex Type

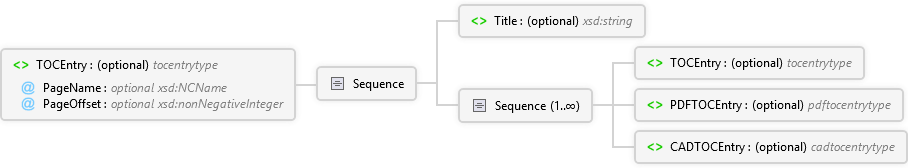

Diagram
CADTOCEntry Element PDFTOCEntry Element TOCEntry Element Sequence Title Element Sequence TOCEntry Element
Overview
TOCEntry optional tocentrytype Complex Type
A TOC entry element can contain another TOC entry element as a child.
PageName optional xsd:NCName
The PageName attribute is the referenced list file image page.
PageOffset optional xsd:nonNegativeInteger
The PageOffset attribute is the referenced page by offset from either the beginning of the list file images or, if defined, the page indicated by PageName.
Sequence
Title optional xsd:string
This title string is the string displayed in the table of contents for this entry.
Sequence 1..∞
TOCEntry optional tocentrytype Complex Type
A TOC entry element can contain another TOC entry element as a child.
PDFTOCEntry optional pdftocentrytype Complex Type
A TOC entry element can contain a PDF TOC entry element as a child.
ImageFileName required xsd:NCName
The name of an entry in the image file list. The named file must be a PDF file. If the file is not a PDF file, or the PDF file has no TOC, this entry is removed from the TOC tree.
PruneMissingTargets optional xsd:boolean
The PruneMissingTargets attribute, if true, removed TOC entries that do not point to pages included in the named image file entry. Otherwise, these TOC entries will be non-functional.
CADTOCEntry optional cadtocentrytype Complex Type
A TOC entry element can contain a CAD TOC entry element as a child.
ImageFileName required xsd:NCName
The name of an entry in the image file list. The named file must be a CAD file. If the file is not a CAD file, this entry is removed from the TOC tree.
PruneMissingTargets optional xsd:boolean
The PruneMissingTargets attribute, if true, removed TOC entries that do not point to pages included in the named image file entry. Otherwise, these TOC entries will be non-functional.
Source
<xsd:element name="TOCEntry" type="tocentrytype" minOccurs="0" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>A TOC entry element can contain another TOC entry element as a child.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
See Also
tocentrytype Complex Type | Accusoft Prizm Viewer List File Schema
