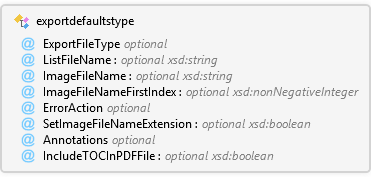

exportdefaultstype Complex Type

Export defaults are specified once for the entire listfile.

exportdefaultstype

Export defaults are specified once for the entire listfile.

ExportFileType optional Restriction of xsd:string

The ExportFileType attribute specifies the default file type when displaying the export dialog.

ListFileName optional xsd:string

This filename will be used as the default file name in the export dialog. If a file with this name already exists, a unique number will be appended to the file name.

ImageFileName optional xsd:string

This filename will be used to name the original image files that are exported. If a file with this name already exists, a unique number will be appended to the file name.

ImageFileNameFirstIndex optional xsd:nonNegativeInteger

This number will be used as the first unique number appended to a file name.

ErrorAction optional Restriction of xsd:string

The ErrorAction attribute specifies what happens if any image can't be retrieved during exporting.

SetImageFileNameExtension optional xsd:boolean

The SetImageFileNameExtension is reserved.

Annotations optional Restriction of xsd:string

The Annotations attribute specifies the default for how annotations are handled when exporting. Not all values are applicable to all exported image types.

IncludeTOCInPDFFile optional xsd:boolean

The IncludeTOCInPDFFile attribute causes any defined table of contents to be generated for an exported PDF document.

ExportDefaults Element

Name	Type	Use	Description
ExportFileType	Restriction of xsd:string	optional	The ExportFileType attribute specifies the default file type when displaying the export dialog.
ListFileName	xsd:string	optional	This filename will be used as the default file name in the export dialog. If a file with this name already exists, a unique number will be appended to the file name.
ImageFileName	xsd:string	optional	This filename will be used to name the original image files that are exported. If a file with this name already exists, a unique number will be appended to the file name.
ImageFileNameFirstIndex	xsd:nonNegativeInteger	optional	This number will be used as the first unique number appended to a file name.
ErrorAction	Restriction of xsd:string	optional	The ErrorAction attribute specifies what happens if any image can't be retrieved during exporting.
SetImageFileNameExtension	xsd:boolean	optional	The SetImageFileNameExtension is reserved.
Annotations	Restriction of xsd:string	optional	The Annotations attribute specifies the default for how annotations are handled when exporting. Not all values are applicable to all exported image types.
IncludeTOCInPDFFile	xsd:boolean	optional	The IncludeTOCInPDFFile attribute causes any defined table of contents to be generated for an exported PDF document.

<xsd:complexType name="exportdefaultstype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>Export defaults are specified once for the entire listfile.</xsd:documentation>
  </xsd:annotation>
  <xsd:attribute name="ExportFileType" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ExportFileType attribute specifies the default file type when displaying the export dialog.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="PDF">
          <xsd:annotation>
            <xsd:documentation>The PDF value causes the default export file type to be "PDF Document".</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="TIFF">
          <xsd:annotation>
            <xsd:documentation>The TIFF value causes the default export file type to be "TIFF Image".</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="ListFile">
          <xsd:annotation>
            <xsd:documentation>The ListFile value causes the default export file type to be "List File with Original Images". Note that since the source has to be a list file, this will never be "Original Image".</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="ListFileName" type="xsd:string" use="optional">
    <xsd:annotation>
      <xsd:documentation>This filename will be used as the default file name in the export dialog. If a file with this name already exists, a unique number will be appended to the file name.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ImageFileName" type="xsd:string" use="optional">
    <xsd:annotation>
      <xsd:documentation>This filename will be used to name the original image files that are exported. If a file with this name already exists, a unique number will be appended to the file name.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ImageFileNameFirstIndex" type="xsd:nonNegativeInteger" use="optional">
    <xsd:annotation>
      <xsd:documentation>This number will be used as the first unique number appended to a file name.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ErrorAction" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ErrorAction attribute specifies what happens if any image can't be retrieved during exporting.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:annotation>
        <xsd:documentation>The attribute value is set to one of the following actions.</xsd:documentation>
      </xsd:annotation>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="Ignore">
          <xsd:annotation>
            <xsd:documentation>This value causes exporting to ignore any errors retrieving this file and simply leave it out of the exported image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Cancel">
          <xsd:annotation>
            <xsd:documentation>This value causes exporting to immediately cancel if there are any errors retrieving this file.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="SetImageFileNameExtension" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>The SetImageFileNameExtension is reserved.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="Annotations" use="optional">
    <xsd:annotation>
      <xsd:documentation>The Annotations attribute specifies the default for how annotations are handled when exporting. Not all values are applicable to all exported image types.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:annotation>
        <xsd:documentation>The attribute value is set to one of the following actions.</xsd:documentation>
      </xsd:annotation>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="Ignore">
          <xsd:annotation>
            <xsd:documentation>All external annotations will not be exported. Embedded annotations will not be exported if export file type is either PDF or TIFF.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="BurnInPromoteImage">
          <xsd:annotation>
            <xsd:documentation>The image will be converted into a color image (if the image is bitonal and is annotated) and all external or embedded annotations will be rendered into the image. This setting is ignored when exporting original images.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="BurnInDemoteAnnotations">
          <xsd:annotation>
            <xsd:documentation>All external or embedded annotations will be converted to bitonal (if the image is bitonal) and rendered into the image. This setting is ignored when exporting original images.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="SaveAsNative">
          <xsd:annotation>
            <xsd:documentation>All external or embedded annotations will be converted to annotations in the native image file format. This setting is ignored when exporting original images.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="SaveAsFile">
          <xsd:annotation>
            <xsd:documentation>All external or embedded annotations will be saved as external annotations.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="IncludeTOCInPDFFile" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>The IncludeTOCInPDFFile attribute causes any defined table of contents to be generated for an exported PDF document.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
</xsd:complexType>

Accusoft Prizm Viewer List File Schema
