ImageSettingsList Element

The ImageSettingsList element contains a list of image settings that are referenced by name from an image page, a range of image pages, or an image file.

imagesettingslisttype Complex Type

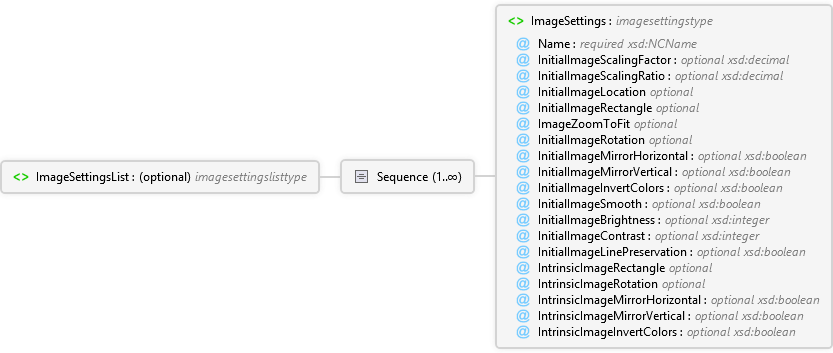

ImageSettingsList optional imagesettingslisttype Complex Type

The ImageSettingsList element contains a list of image settings that are referenced by name from an image page, a range of image pages, or an image file.

Sequence 1..∞

ImageSettings imagesettingstype Complex Type

An image settings list contains only ImageSettings elements.

Name required xsd:NCName

The Nameattribute is used to associate image settings with an image page, page range, or image file.

InitialImageScalingFactor optional xsd:decimal

The InitialImageScalingFactor attribute is used to set the image scaling factor. If this attribute is defined, the scaling method for the page is set to use this attribute.

InitialImageScalingRatio optional xsd:decimal

The InitialImageScalingRatio attribute is used to set the image scaling ratio. If this attribute is defined, the scaling method for the page is set to use this attribute.

InitialImageLocation optional Restriction of xsd:string

The InitialImageLocation attribute is used to set the image point location. If this attribute is defined, the scaling method for the page is set to use this attribute.

InitialImageRectangle optional Restriction of xsd:string

The InitialImageRectangle attribute is used to set the image rectangle location. If this attribute is defined, the scaling method for the page is set to use this attribute.

ImageZoomToFit optional Restriction of xsd:string

The ImageZoomToFit attribute is used to set the image fit. If this attribute is defined, the scaling method for the page is set to use this attribute.

InitialImageRotation optional Restriction of xsd:string

The InitialImageRotation attribute is used to set the initial image rotation.

InitialImageMirrorHorizontal optional xsd:boolean

The InitialImageMirrorHorizontal attribute is used to set the initial image horizontal mirroring.

InitialImageMirrorVertical optional xsd:boolean

The InitialImageMirrorVertical attribute is used to set the initial image vertical mirroring.

InitialImageInvertColors optional xsd:boolean

The InitialImageInvertColors attribute is used to set the initial image invert colors.

InitialImageSmooth optional xsd:boolean

The InitialImageSmooth attribute is used to set the initial image smoothing. This will only be applied to color images.

InitialImageBrightness optional xsd:integer

The InitialImageBrightness attribute is used to set the initial brightness. This will only be applied to color images.

InitialImageContrast optional xsd:integer

The InitialImageContrast attribute is used to set the initial image contrast. This will only be applied to color images.

InitialImageLinePreservation optional xsd:boolean

The InitialImageLinePreservation attribute is used to set the initial line preservation. This will only be applied to bitonal images.

IntrinsicImageRectangle optional Restriction of xsd:string

The IntrinsicImageRectangle attribute is used to crop the image to the specified rectangle.

IntrinsicImageRotation optional Restriction of xsd:string

The IntrinsicImageRotation attribute is used to rotate the image independent of other rotation settings. This is useful for correcting the orientation of an incorrectly orientated image pages.

IntrinsicImageMirrorHorizontal optional xsd:boolean

The IntrinsicImageMirrorHorizontal attribute is used to horizontally mirror the image independent of other mirror settings.

IntrinsicImageMirrorVertical optional xsd:boolean

The IntrinsicImageMirrorVertical attribute is used to vertically mirror the image independent of other mirror settings.

IntrinsicImageInvertColors optional xsd:boolean

The IntrinsicImageInvertColors attribute is used to invert the image's colors independent of other invert color settings. This is useful for correcting microfilm scans.

<xsd:element name="ImageSettingsList" type="imagesettingslisttype" minOccurs="0" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>The ImageSettingsList element contains a list of image settings that are referenced by name from an image page, a range of image pages, or an image file.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
