AnnotationDefaults Element
Accusoft Prizm Viewer List File Schema > PrizmViewerListFile Element : AnnotationDefaults Element
Description
The AnnotationDefaults element contains annotation defaults to override those in the user's preferences.
Namespace (none)
Type
annotationdefaultstype Complex Type

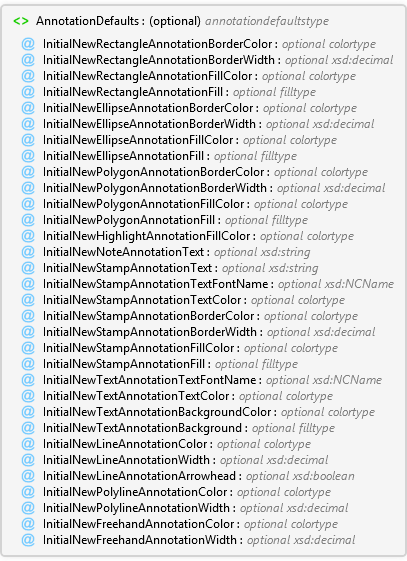

Diagram
AnnotationDefaults Element
Overview
AnnotationDefaults optional annotationdefaultstype Complex Type
The AnnotationDefaults element contains annotation defaults to override those in the user's preferences.
InitialNewRectangleAnnotationBorderColor optional colortype Simple Type
The InitialNewRectangleAnnotationBorderColor attribute specifies the default rectangle border color.
InitialNewRectangleAnnotationBorderWidth optional xsd:decimal
The InitialNewRectangleAnnotationBorderWidth attribute specifies the default rectangle border with, in image pixels.
InitialNewRectangleAnnotationFillColor optional colortype Simple Type
The InitialNewRectangleAnnotationFillColor attribute specifies the default rectangle fill color.
InitialNewRectangleAnnotationFill optional filltype Simple Type
The InitialNewRectangleAnnotationFill attribute specifies the default rectangle fill type.
InitialNewEllipseAnnotationBorderColor optional colortype Simple Type
The InitialNewEllipseAnnotationBorderColor attribute specifies the default ellipse border color.
InitialNewEllipseAnnotationBorderWidth optional xsd:decimal
The InitialNewEllipseAnnotationBorderWidth attribute specifies the default ellipse border width, in image pixels.
InitialNewEllipseAnnotationFillColor optional colortype Simple Type
The InitialNewEllipseAnnotationFillColor attribute specifies the default ellipse fill color.
InitialNewEllipseAnnotationFill optional filltype Simple Type
The InitialNewEllipseAnnotationFill attribute specifies the default ellipse fill type.
InitialNewPolygonAnnotationBorderColor optional colortype Simple Type
The InitialNewPolygonAnnotationBorderColor attribute specifies the default polygon border color.
InitialNewPolygonAnnotationBorderWidth optional xsd:decimal
The InitialNewPolygonAnnotationBorderWidth attribute specifies the default polygon border width, in image pixels.
InitialNewPolygonAnnotationFillColor optional colortype Simple Type
The InitialNewPolygonAnnotationFillColor attribute specifies the default polygon fill color.
InitialNewPolygonAnnotationFill optional filltype Simple Type
The InitialNewPolygonAnnotationFill attribute specifies the default polygon fill type.
InitialNewHighlightAnnotationFillColor optional colortype Simple Type
The InitialNewHighlightAnnotationFillColor attribute specifies the default highlight fill color.
InitialNewNoteAnnotationText optional xsd:string
The InitialNewNoteAnnotationText attribute specifies the default note annotation text. This value has on corresponding user preference.
InitialNewStampAnnotationText optional xsd:string
The InitialNewStampAnnotationText attribute specifies the default stamp annotation text.
InitialNewStampAnnotationTextFontName optional xsd:NCName
The InitialNewStampAnnotationTextFontName attribute specifies the default stamp annotation font. The specified name must be in the FontList.
InitialNewStampAnnotationTextColor optional colortype Simple Type
The InitialNewStampAnnotationTextColor attribute specifies the default text color.
InitialNewStampAnnotationBorderColor optional colortype Simple Type
The InitialNewStampAnnotationBorderColor attribute specifies the default border color.
InitialNewStampAnnotationBorderWidth optional xsd:decimal
The InitialNewStampAnnotationBorderWidth attribute specifies the default border width, in image pixels.
InitialNewStampAnnotationFillColor optional colortype Simple Type
The InitialNewStampAnnotationFillColor attribute specifies the default fill color.
InitialNewStampAnnotationFill optional filltype Simple Type
The InitialNewStampAnnotationFill attribute specifies the default fill type.
InitialNewTextAnnotationTextFontName optional xsd:NCName
The InitialNewTextAnnotationTextFontName attribute specifies the default text font. The specified name must be in the FontList.
InitialNewTextAnnotationTextColor optional colortype Simple Type
The InitialNewTextAnnotationTextColor attribute specifies the default text color.
InitialNewTextAnnotationBackgroundColor optional colortype Simple Type
The InitialNewTextAnnotationBackgroundColor attribute specifies the default background (fill) color.
InitialNewTextAnnotationBackground optional filltype Simple Type
The InitialNewTextAnnotationBackground attribute specifies the default background (fill) type.
InitialNewLineAnnotationColor optional colortype Simple Type
The InitialNewLineAnnotationColor attribute specifies the default line color.
InitialNewLineAnnotationWidth optional xsd:decimal
The InitialNewLineAnnotationWidth attribute specifies the default line width, in pixels.
InitialNewLineAnnotationArrowhead optional xsd:boolean
The InitialNewLineAnnotationArrowhead attribute specifies the default line arrowhead setting. Arrows are drawn at the second point of the line.
InitialNewPolylineAnnotationColor optional colortype Simple Type
The InitialNewPolylineAnnotationColor attribute specifies the default polyline line color.
InitialNewPolylineAnnotationWidth optional xsd:decimal
The InitialNewPolylineAnnotationWidth attribute specifies the default polyline line width, in image pixels.
InitialNewFreehandAnnotationColor optional colortype Simple Type
The InitialNewFreehandAnnotationColor attribute specifies the default freehand line color.
InitialNewFreehandAnnotationWidth optional xsd:decimal
The InitialNewFreehandAnnotationWidth attribute specifies the default freehand line width, in image pixels.
Source
<xsd:element name="AnnotationDefaults" type="annotationdefaultstype" minOccurs="0" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>The AnnotationDefaults element contains annotation defaults to override those in the user's preferences.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
See Also
PrizmViewerListFile Element | Accusoft Prizm Viewer List File Schema
