ImGearARTText Class
Members  Example




ImageGear23.Art Assembly > ImageGear.ART Namespace : ImGearARTText Class
Represents ART Text mark.

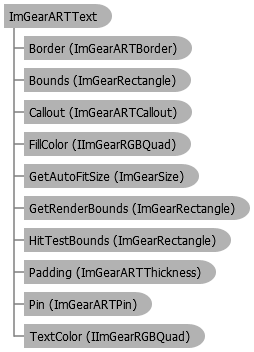

Object Model
ImGearARTText ClassImGearARTBorder ClassImGearRectangle StructureImGearARTCallout ClassIImGearRGBQuad InterfaceImGearSize StructureImGearRectangle StructureImGearRectangle StructureImGearARTThickness StructureImGearARTPin ClassIImGearRGBQuad Interface
Syntax
'Declaration

Public Class ImGearARTText
   Inherits ImGearARTMark
   Implements IImGearARTText
'Usage

Dim instance As ImGearARTText
public class ImGearARTText : ImGearARTMark, IImGearARTText
public __gc class ImGearARTText : public ImGearARTMark, IImGearARTText
public ref class ImGearARTText : public ImGearARTMark, IImGearARTText
Example
// Setup color for the border.
ImGearRGBQuad igRGBQuadBorder = new ImGearRGBQuad(0, 255, 0);
// Setup a border with a width of 3 and a dot pattern.
ImGearARTBorder igARTBorder = new ImGearARTBorder(
    igRGBQuadBorder, 3, ImGearARTPenStyle.DOT
);
// Setup color for the pin.
ImGearRGBQuad igRGBQuadPin = new ImGearRGBQuad(0, 0, 255);
// Create pin to be used in the annotation.
ImGearARTPin igARTPin = new ImGearARTPin(igRGBQuadPin, ImGearARTPinAlignment.RIGHT_TOP);
// Setup color for the callout border.
ImGearRGBQuad igRGBQuadBorderCallout = new ImGearRGBQuad(0, 255, 255);
// Setup a border with a width of 3 and a solid pattern.
ImGearARTBorder igARTBorderCallout = new ImGearARTBorder(
    igRGBQuadBorder, 3, ImGearARTPenStyle.SOLID
);
// Create a callout to be used for the text annotation.
ImGearARTCallout igARTCallout = new ImGearARTCallout(
    ImGearARTCalloutType.LINE, igPage.DIB.Width / 2,
    igPage.DIB.Height / 2, igARTBorderCallout
);
// Setup rectangle for the text mark's location.
ImGearRectangle igRectangle = new ImGearRectangle(10, 10, 330, 40);
// Setup color for the text.
ImGearRGBQuad igRGBQuadText = new ImGearRGBQuad(255, 0, 255);
// Setup color for the fill.
ImGearRGBQuad igRGBQuadFill = new ImGearRGBQuad(200, 200, 200);
// Create the text annotation.
ImGearARTText igARTText = new ImGearARTText(
    igRectangle, "ImGearARTText annotation", igRGBQuadText,
    ImGearARTTextType.DIRECT_TEXT, 255, igRGBQuadFill, igARTBorder, false,
    255, "Arial", (float)14.0, ImGearARTFontStyles.Regular, igARTPin, igARTCallout
);
// Add the annotation to the ARTPage.
igARTPage.AddMark(igARTText, ImGearARTCoordinatesType.IMAGE_COORD);
' Setup color for the border.
Dim igRGBQuadBorder As New ImGearRGBQuad(0, 255, 0)
' Setup a border with a width of 3 and a dot pattern.
Dim igARTBorder As New ImGearARTBorder(igRGBQuadBorder, 3, ImGearARTPenStyle.DOT)
' Setup color for the pin.
Dim igRGBQuadPin As New ImGearRGBQuad(0, 0, 255)
' Create pin to be used in the annotation.
Dim igARTPin As New ImGearARTPin(igRGBQuadPin, ImGearARTPinAlignment.RIGHT_TOP)
' Setup color for the callout border.
Dim igRGBQuadBorderCallout As New ImGearRGBQuad(0, 255, 255)
' Setup a border with a width of 3 and a solid pattern.
Dim igARTBorderCallout As New ImGearARTBorder(igRGBQuadBorder, 3, ImGearARTPenStyle.SOLID)
' Create a callout to be used for the text annotation.
Dim igARTCallout As New ImGearARTCallout( _
 ImGearARTCalloutType.LINE, igPage.DIB.Width / 2, igPage.DIB.Height / 2, igARTBorderCallout)
' Setup rectangle for the text mark's location.
Dim igRectangle As New ImGearRectangle(10, 10, 330, 40)
' Setup color for the text.
Dim igRGBQuadText As New ImGearRGBQuad(255, 0, 255)
' Setup color for the fill.
Dim igRGBQuadFill As New ImGearRGBQuad(200, 200, 200)
' Create the text annotation.
Dim igARTText As New ImGearARTText( _
 igRectangle, "ImGearARTText annotation", igRGBQuadText, _
 ImGearARTTextType.DIRECT_TEXT, 255, igRGBQuadFill, igARTBorder, False, _
 255, "Arial", CSng(14), ImGearARTFontStyles.Regular, igARTPin, igARTCallout)
' Add the annotation to the ARTPage.
igARTPage.AddMark(igARTText, ImGearARTCoordinatesType.IMAGE_COORD)
Inheritance Hierarchy

System.Object
   ImageGear.ART.ImGearARTSelection
      ImageGear.ART.ImGearARTMark
         ImageGear.ART.ImGearARTText
