CAD Layers

The CAD Layers docking window lists the layers that are available for viewing.

The CAD Layers docking window displays the layers in alphabetical order and is case sensitive.

Examples of CAD Layers docking window:

When you first open a CAD image, the default is to display all CAD layers in the window (all check boxes are selected):

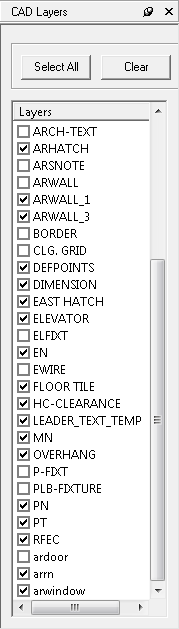

If there are layers you don't want to see, de-select the check box next to each layer you don't want to display:

You can also click Select All to automatically select all the check boxes (and see all the layers) or click Clear to de-select all the check boxes.
