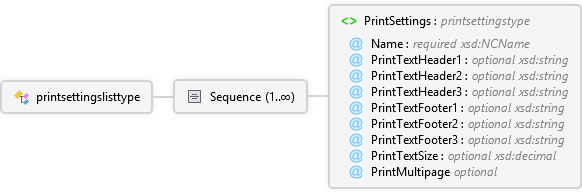

printsettingslisttype Complex Type

The print settings list consists of a list of PrintSettings elements.

printsettingslisttype

The print settings list consists of a list of PrintSettings elements.

Sequence 1..∞

PrintSettings printsettingstype Complex Type

A print settings list contains only PrintSettings elements.

Name required xsd:NCName

The Name attribute is used to associate print settings with an image page, page range, or image file.

PrintTextHeader1 optional xsd:string

The PrintTextHeader1 attribute specifies the first line of the header printed on a page. This setting overrides user preferences.

PrintTextHeader2 optional xsd:string

The PrintTextHeader2 attribute specifies the second line of the header printed on a page. This setting overrides user preferences.

PrintTextHeader3 optional xsd:string

The PrintTextHeader3 attribute specifies the third line of the header printed on a page. This setting overrides user preferences.

PrintTextFooter1 optional xsd:string

The PrintTextFooter1 attribute specifies the first line of the footer printed on a page. This setting overrides user preferences.

PrintTextFooter2 optional xsd:string

The PrintTextFooter2 attribute specifies the second line of the footer printed on a page. This setting overrides user preferences.

PrintTextFooter3 optional xsd:string

The PrintTextFooter3 attribute specifies the third line of the footer printed on a page. This setting overrides user preferences.

PrintTextSize optional xsd:decimal

The x attribute specifies the size (in points) of the font used to render the header and footer. This setting overrides user preferences.

PrintMultipage optional Restriction of xsd:string

The PrintMultipage attribute causes ANSI B and C sized paper to be treated as 2 or 4 letter sized pieces of paper, respectively. Only the headers and footers on the first page are printed.

PrintSettingsList Element

<xsd:complexType name="printsettingslisttype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>The print settings list consists of a list of PrintSettings elements.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence maxOccurs="unbounded">
    <xsd:annotation>
      <xsd:documentation>The print settings list can contain any number of PrintSettings elements.</xsd:documentation>
    </xsd:annotation>
    <xsd:element name="PrintSettings" type="printsettingstype">
      <xsd:annotation>
        <xsd:documentation>A print settings list contains only PrintSettings elements.</xsd:documentation>
      </xsd:annotation>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>

Accusoft Prizm Viewer List File Schema
