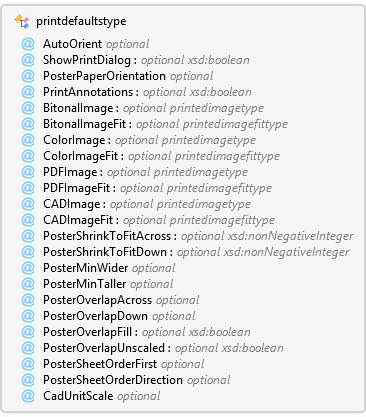

printdefaultstype Complex Type

Printer defaults are specified once for the entire listfile.

printdefaultstype

Printer defaults are specified once for the entire listfile.

AutoOrient optional Restriction of xsd:string

The AutoOrient attribute specifies how images are to be re-orientated to best fit on the selected paper size.

ShowPrintDialog optional xsd:boolean

This attribute suppresses the print job dialog and uses defaults to complete the print job. All the pages in the list file are printed.

PosterPaperOrientation optional Restriction of xsd:string

The attribute value is set by using the following orientations.

PrintAnnotations optional xsd:boolean

The PrintAnnotations attribute will cause annotations to be included when printing if set to true.

BitonalImage optional printedimagetype Simple Type

The BitonalImage attribute specifies whether or not bitonal images can be printed as posters in addition to printing as single pages.

BitonalImageFit optional printedimagefittype Simple Type

The BitonalImageFit attribute specifies how a bitonal image is fitted to a single page.

ColorImage optional printedimagetype Simple Type

The ColorImage attribute specifies whether or not color images can be printed as posters in addition to printing as single pages.

ColorImageFit optional printedimagefittype Simple Type

The ColorImageFit attribute specifies how a color image is fitted to a single page.

PDFImage optional printedimagetype Simple Type

The PDFImage attribute specifies whether or not PDF pages can be printed as posters in addition to printing as single pages.

PDFImageFit optional printedimagefittype Simple Type

The PDFImageFit attribute specifies how a PDF page is fitted to a single page.

CADImage optional printedimagetype Simple Type

The CADImage attribute specifies whether or not CAD drawings can be printed as posters in addition to printing as single pages.

CADImageFit optional printedimagefittype Simple Type

The CADImageFit attribute specifies how a CAD drawing is fitted to a single page.

PosterShrinkToFitAcross optional xsd:nonNegativeInteger

The PosterShrinkToFitAcross attribute limits the number of horizontal pages a poster can use. Set to zero for an unlimitied number of pages.

PosterShrinkToFitDown optional xsd:nonNegativeInteger

>The PosterShrinkToFitDownattribute limits the number of vertical pages a poster can use. Set to zero for an unlimitied number of pages.

PosterMinWider optional Restriction of xsd:decimal

The PosterMinWider attribute specifies how many inches wider the image must be than the width of the currently selected paper. If the image is not this much wider, it is printed as a single sheet.

PosterMinTaller optional Restriction of xsd:decimal

The PosterMinTaller attribute specifies how many inches taller the image must be than the height of the currently selected paper. If the image is not this much heigher, it is printed as a single sheet.

PosterOverlapAcross optional Restriction of xsd:decimal

The PosterOverlapAcross attribute specifies how many inches the printer poster pages will overlap each other horizontally.

PosterOverlapDown optional Restriction of xsd:decimal

The PosterOverlapDown attribute specifies how many inches the printer poster pages will overlap each other vertically.

PosterOverlapFill optional xsd:boolean

The PosterOverlapFill attribute specifies whether or not the last poster page in the row(s) and/or column(s) will fill with image instead of being blank.

PosterOverlapUnscaled optional xsd:boolean

The PosterOverlapUnscaled attribute causes the overlap between poster pages to be in image inches instead of paper inches.

PosterSheetOrderFirst optional Restriction of xsd:string

The attribute value is set by using one of the following starting corners.

PosterSheetOrderDirection optional Restriction of xsd:string

The PosterSheetOrderDirection attribute specifies whether rows or columns are colated together.

CadUnitScale optional Restriction of xsd:decimal

The CadUnitScale specifies to how many inches each cad unit will scale, regardless of the type of cad unit.

PrintDefaults Element

Name	Type	Use	Description
AutoOrient	Restriction of xsd:string	optional	The AutoOrient attribute specifies how images are to be re-orientated to best fit on the selected paper size.
ShowPrintDialog	xsd:boolean	optional	This attribute suppresses the print job dialog and uses defaults to complete the print job. All the pages in the list file are printed.
PosterPaperOrientation	Restriction of xsd:string	optional	The attribute value is set by using the following orientations.
PrintAnnotations	xsd:boolean	optional	The PrintAnnotations attribute will cause annotations to be included when printing if set to true.
BitonalImage	printedimagetype Simple Type	optional	The BitonalImage attribute specifies whether or not bitonal images can be printed as posters in addition to printing as single pages.
BitonalImageFit	printedimagefittype Simple Type	optional	The BitonalImageFit attribute specifies how a bitonal image is fitted to a single page.
ColorImage	printedimagetype Simple Type	optional	The ColorImage attribute specifies whether or not color images can be printed as posters in addition to printing as single pages.
ColorImageFit	printedimagefittype Simple Type	optional	The ColorImageFit attribute specifies how a color image is fitted to a single page.
PDFImage	printedimagetype Simple Type	optional	The PDFImage attribute specifies whether or not PDF pages can be printed as posters in addition to printing as single pages.
PDFImageFit	printedimagefittype Simple Type	optional	The PDFImageFit attribute specifies how a PDF page is fitted to a single page.
CADImage	printedimagetype Simple Type	optional	The CADImage attribute specifies whether or not CAD drawings can be printed as posters in addition to printing as single pages.
CADImageFit	printedimagefittype Simple Type	optional	The CADImageFit attribute specifies how a CAD drawing is fitted to a single page.
PosterShrinkToFitAcross	xsd:nonNegativeInteger	optional	The PosterShrinkToFitAcross attribute limits the number of horizontal pages a poster can use. Set to zero for an unlimitied number of pages.
PosterShrinkToFitDown	xsd:nonNegativeInteger	optional	>The PosterShrinkToFitDownattribute limits the number of vertical pages a poster can use. Set to zero for an unlimitied number of pages.
PosterMinWider	Restriction of xsd:decimal	optional	The PosterMinWider attribute specifies how many inches wider the image must be than the width of the currently selected paper. If the image is not this much wider, it is printed as a single sheet.
PosterMinTaller	Restriction of xsd:decimal	optional	The PosterMinTaller attribute specifies how many inches taller the image must be than the height of the currently selected paper. If the image is not this much heigher, it is printed as a single sheet.
PosterOverlapAcross	Restriction of xsd:decimal	optional	The PosterOverlapAcross attribute specifies how many inches the printer poster pages will overlap each other horizontally.
PosterOverlapDown	Restriction of xsd:decimal	optional	The PosterOverlapDown attribute specifies how many inches the printer poster pages will overlap each other vertically.
PosterOverlapFill	xsd:boolean	optional	The PosterOverlapFill attribute specifies whether or not the last poster page in the row(s) and/or column(s) will fill with image instead of being blank.
PosterOverlapUnscaled	xsd:boolean	optional	The PosterOverlapUnscaled attribute causes the overlap between poster pages to be in image inches instead of paper inches.
PosterSheetOrderFirst	Restriction of xsd:string	optional	The attribute value is set by using one of the following starting corners.
PosterSheetOrderDirection	Restriction of xsd:string	optional	The PosterSheetOrderDirection attribute specifies whether rows or columns are colated together.
CadUnitScale	Restriction of xsd:decimal	optional	The CadUnitScale specifies to how many inches each cad unit will scale, regardless of the type of cad unit.

<xsd:complexType name="printdefaultstype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>Printer defaults are specified once for the entire listfile.</xsd:documentation>
  </xsd:annotation>
  <xsd:attribute name="AutoOrient" use="optional">
    <xsd:annotation>
      <xsd:documentation>The AutoOrient attribute specifies how images are to be re-orientated to best fit on the selected paper size.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:annotation>
        <xsd:documentation>The attribute value is set by using one of the following automatic orientation names.</xsd:documentation>
      </xsd:annotation>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="None">
          <xsd:annotation>
            <xsd:documentation>This value turns off automatic orientation.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Clockwise">
          <xsd:annotation>
            <xsd:documentation>The Clockwise value make automatic orientation rotate the image to the right if that makes better use of the paper.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="CounterClockwise">
          <xsd:annotation>
            <xsd:documentation>The CounterClockwisevalue make automatic orientation rotate the image to the left if that makes better use of the paper.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="ShowPrintDialog" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>This attribute suppresses the print job dialog and uses defaults to complete the print job. All the pages in the list file are printed.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterPaperOrientation" use="optional">
    <xsd:annotation>
      <xsd:documentation>The attribute value is set by using the following orientations.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="SameAsPaperOrientation">
          <xsd:annotation>
            <xsd:documentation>Do not use a different orientation for poster paper.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Landscape">
          <xsd:annotation>
            <xsd:documentation>Set the paper to landscape when printing posters.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Portrait">
          <xsd:annotation>
            <xsd:documentation>Set the paper to portrait when printing posters.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PrintAnnotations" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PrintAnnotations attribute will cause annotations to be included when printing if set to true.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="BitonalImage" type="printedimagetype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The BitonalImage attribute specifies whether or not bitonal images can be printed as posters in addition to printing as single pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="BitonalImageFit" type="printedimagefittype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The BitonalImageFit attribute specifies how a bitonal image is fitted to a single page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ColorImage" type="printedimagetype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ColorImage attribute specifies whether or not color images can be printed as posters in addition to printing as single pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="ColorImageFit" type="printedimagefittype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The ColorImageFit attribute specifies how a color image is fitted to a single page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PDFImage" type="printedimagetype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PDFImage attribute specifies whether or not PDF pages can be printed as posters in addition to printing as single pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PDFImageFit" type="printedimagefittype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PDFImageFit attribute specifies how a PDF page is fitted to a single page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="CADImage" type="printedimagetype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The CADImage attribute specifies whether or not CAD drawings can be printed as posters in addition to printing as single pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="CADImageFit" type="printedimagefittype" use="optional">
    <xsd:annotation>
      <xsd:documentation>The CADImageFit attribute specifies how a CAD drawing is fitted to a single page.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterShrinkToFitAcross" type="xsd:nonNegativeInteger" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterShrinkToFitAcross attribute limits the number of horizontal pages a poster can use. Set to zero for an unlimitied number of pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterShrinkToFitDown" type="xsd:nonNegativeInteger" use="optional">
    <xsd:annotation>
      <xsd:documentation>&gt;The PosterShrinkToFitDownattribute limits the number of vertical pages a poster can use. Set to zero for an unlimitied number of pages.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterMinWider" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterMinWider attribute specifies how many inches wider the image must be than the width of the currently selected paper. If the image is not this much wider, it is printed as a single sheet.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:decimal">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be a floating point number greater that 0.0.</xsd:documentation>
        </xsd:annotation>
        <xsd:minExclusive value="0.0" />
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PosterMinTaller" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterMinTaller attribute specifies how many inches taller the image must be than the height of the currently selected paper. If the image is not this much heigher, it is printed as a single sheet.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:decimal">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be a floating point number greater that 0.0.</xsd:documentation>
        </xsd:annotation>
        <xsd:minExclusive value="0.0" />
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PosterOverlapAcross" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterOverlapAcross attribute specifies how many inches the printer poster pages will overlap each other horizontally.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:decimal">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be a floating point number greater that 0.0.</xsd:documentation>
        </xsd:annotation>
        <xsd:minInclusive value="0.0" />
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PosterOverlapDown" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterOverlapDown attribute specifies how many inches the printer poster pages will overlap each other vertically.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:decimal">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be a floating point number greater that 0.0.</xsd:documentation>
        </xsd:annotation>
        <xsd:minInclusive value="0.0" />
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PosterOverlapFill" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterOverlapFill attribute specifies whether or not the last poster page in the row(s) and/or column(s) will fill with image instead of being blank.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterOverlapUnscaled" type="xsd:boolean" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterOverlapUnscaled attribute causes the overlap between poster pages to be in image inches instead of paper inches.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="PosterSheetOrderFirst" use="optional">
    <xsd:annotation>
      <xsd:documentation>The attribute value is set by using one of the following starting corners.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="TopLeft">
          <xsd:annotation>
            <xsd:documentation>The TopLeft value starts printing poster pages from the upper left corner of the image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="TopRight">
          <xsd:annotation>
            <xsd:documentation>The TopRight value starts printing poster pages from the upper right corner of the image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="BottomLeft">
          <xsd:annotation>
            <xsd:documentation>The BottomLeft value starts printing poster pages from the lower left corner of the image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="BottomRight">
          <xsd:annotation>
            <xsd:documentation>The BottomRight value starts printing poster pages from the lower right corner of the image.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="PosterSheetOrderDirection" use="optional">
    <xsd:annotation>
      <xsd:documentation>The PosterSheetOrderDirection attribute specifies whether rows or columns are colated together.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be one of these names.</xsd:documentation>
        </xsd:annotation>
        <xsd:enumeration value="Horizontal">
          <xsd:annotation>
            <xsd:documentation>The Horizontal value causes rows to be colated together.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
        <xsd:enumeration value="Vertical">
          <xsd:annotation>
            <xsd:documentation>The Vertical value causes columns to be colated together.</xsd:documentation>
          </xsd:annotation>
        </xsd:enumeration>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
  <xsd:attribute name="CadUnitScale" use="optional">
    <xsd:annotation>
      <xsd:documentation>The CadUnitScale specifies to how many inches each cad unit will scale, regardless of the type of cad unit.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:decimal">
        <xsd:annotation>
          <xsd:documentation>The attribute value must be a floating point number greater that 0.0.</xsd:documentation>
        </xsd:annotation>
        <xsd:minExclusive value="0.0" />
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
</xsd:complexType>

Accusoft Prizm Viewer List File Schema
