fontlisttype Complex Type

A font list consists of a list of Font elements.

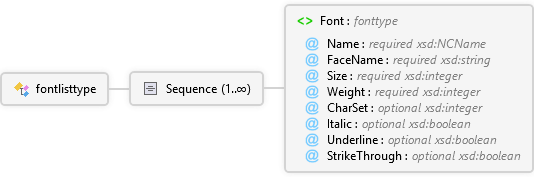

fontlisttype

A font list consists of a list of Font elements.

Sequence 1..∞

Font fonttype Complex Type

A font list contains only Font elements.

Name required xsd:NCName

The name attribute is used to associate a font with an attribute specifying a font.

FaceName required xsd:string

The FaceName attribute is the name of the font face.

Size required xsd:integer

The Size attribute is the size of the font in points.

Weight required xsd:integer

The Weight attribute is the weight of the font. 400 is normal, and 700 is bold.

CharSet optional xsd:integer

The CharSet attribute is the type of character set used. This value is normally 1.

Italic optional xsd:boolean

This Italic attribute will draw the font in italics if true.

Underline optional xsd:boolean

The Underline attribute will draw the font with an underline if true.

StrikeThrough optional xsd:boolean

The Strikethrough attribute will draw the font with a strikethrough if true.

FontList Element

<xsd:complexType name="fontlisttype" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <xsd:annotation>
    <xsd:documentation>A font list consists of a list of Font elements.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence maxOccurs="unbounded">
    <xsd:annotation>
      <xsd:documentation>A font list can contain any number of Font elements.</xsd:documentation>
    </xsd:annotation>
    <xsd:element name="Font" type="fonttype">
      <xsd:annotation>
        <xsd:documentation>A font list contains only Font elements.</xsd:documentation>
      </xsd:annotation>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>
