Stamp Element
See Also  Send comments on this topic.
Accusoft Prizm Viewer Annotations Schema Schema > NotateXpressAnnotations Element > Page Element > Layer Element : Stamp Element

Glossary Item Box

Namespace (none)

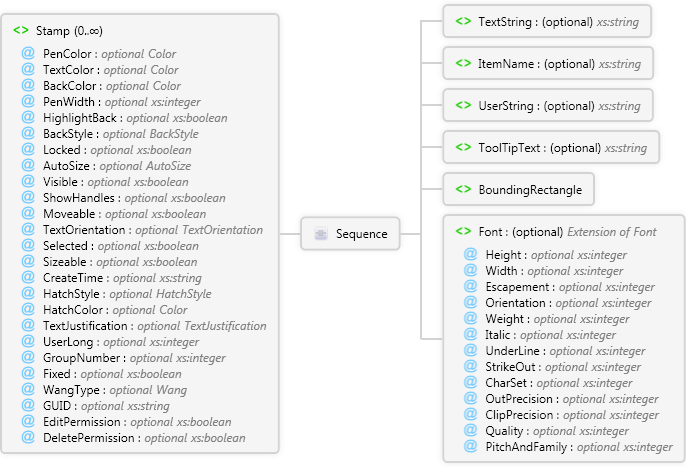

Diagram

Font Element BoundingRectangle Element ToolTipText Element UserString Element ItemName Element TextString Element Sequence Stamp Element

Overview

Stamp 0..∞
PenColor optional Color Simple Type
TextColor optional Color Simple Type
BackColor optional Color Simple Type
PenWidth optional xs:integer
HighlightBack optional xs:boolean
BackStyle optional BackStyle Simple Type
Locked optional xs:boolean
AutoSize optional AutoSize Simple Type
Visible optional xs:boolean
ShowHandles optional xs:boolean
Moveable optional xs:boolean
TextOrientation optional TextOrientation Simple Type
Selected optional xs:boolean
Sizeable optional xs:boolean
CreateTime optional xs:string
HatchStyle optional HatchStyle Simple Type
HatchColor optional Color Simple Type
TextJustification optional TextJustification Simple Type
UserLong optional xs:integer
GroupNumber optional xs:integer
Fixed optional xs:boolean
WangType optional Wang Simple Type
GUID optional xs:string
EditPermission optional xs:boolean
DeletePermission optional xs:boolean
Sequence
TextString optional xs:string
ItemName optional xs:string
UserString optional xs:string
ToolTipText optional xs:string
BoundingRectangle
Sequence
Point 2..2
X required xs:decimal
Y required xs:decimal
Font optional Font Complex Type
Height optional xs:integer
Width optional xs:integer
Escapement optional xs:integer
Orientation optional xs:integer
Weight optional xs:integer
Italic optional xs:integer
UnderLine optional xs:integer
StrikeOut optional xs:integer
CharSet optional xs:integer
OutPrecision optional xs:integer
ClipPrecision optional xs:integer
Quality optional xs:integer
PitchAndFamily optional xs:integer

Attributes

NameTypeUseDefaultFixedDescription
PenColorColor Simple Typeoptional
TextColorColor Simple Typeoptional
BackColorColor Simple Typeoptional
PenWidthxs:integeroptional
HighlightBackxs:booleanoptional
BackStyleBackStyle Simple Typeoptional
Lockedxs:booleanoptional
AutoSizeAutoSize Simple Typeoptional
Visiblexs:booleanoptional
ShowHandlesxs:booleanoptional
Moveablexs:booleanoptional
TextOrientationTextOrientation Simple Typeoptional
Selectedxs:booleanoptional
Sizeablexs:booleanoptional
CreateTimexs:stringoptional
HatchStyleHatchStyle Simple Typeoptional
HatchColorColor Simple Typeoptional
TextJustificationTextJustification Simple Typeoptional
UserLongxs:integeroptional
GroupNumberxs:integeroptional
Fixedxs:booleanoptional
WangTypeWang Simple Typeoptional
GUIDxs:stringoptional
EditPermissionxs:booleanoptional
DeletePermissionxs:booleanoptional

Source

<xs:element minOccurs="0" maxOccurs="unbounded" name="Stamp" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="TextString" type="xs:string" />
      <xs:element minOccurs="0" name="ItemName" type="xs:string" />
      <xs:element minOccurs="0" name="UserString" type="xs:string" />
      <xs:element minOccurs="0" name="ToolTipText" type="xs:string" />
      <xs:element name="BoundingRectangle">
        <xs:complexType>
          <xs:sequence>
            <xs:element minOccurs="2" maxOccurs="2" name="Point">
              <xs:complexType>
                <xs:attribute name="X" type="xs:decimal" use="required" />
                <xs:attribute name="Y" type="xs:decimal" use="required" />
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element minOccurs="0" name="Font" type="Font" />
    </xs:sequence>
    <xs:attribute name="PenColor" type="Color" use="optional" />
    <xs:attribute name="TextColor" type="Color" use="optional" />
    <xs:attribute name="BackColor" type="Color" use="optional" />
    <xs:attribute name="PenWidth" type="xs:integer" use="optional" />
    <xs:attribute name="HighlightBack" type="xs:boolean" use="optional" />
    <xs:attribute name="BackStyle" type="BackStyle" use="optional" />
    <xs:attribute name="Locked" type="xs:boolean" use="optional" />
    <xs:attribute name="AutoSize" type="AutoSize" use="optional" />
    <xs:attribute name="Visible" type="xs:boolean" use="optional" />
    <xs:attribute name="ShowHandles" type="xs:boolean" use="optional" />
    <xs:attribute name="Moveable" type="xs:boolean" use="optional" />
    <xs:attribute name="TextOrientation" type="TextOrientation" use="optional" />
    <xs:attribute name="Selected" type="xs:boolean" use="optional" />
    <xs:attribute name="Sizeable" type="xs:boolean" use="optional" />
    <xs:attribute name="CreateTime" type="xs:string" use="optional" />
    <xs:attribute name="HatchStyle" type="HatchStyle" use="optional" />
    <xs:attribute name="HatchColor" type="Color" use="optional" />
    <xs:attribute name="TextJustification" type="TextJustification" use="optional" />
    <xs:attribute name="UserLong" type="xs:integer" use="optional" />
    <xs:attribute name="GroupNumber" type="xs:integer" use="optional" />
    <xs:attribute name="Fixed" type="xs:boolean" use="optional" />
    <xs:attribute name="WangType" type="Wang" use="optional" />
    <xs:attribute name="GUID" type="xs:string" />
    <xs:attribute name="EditPermission" type="xs:boolean" use="optional" />
    <xs:attribute name="DeletePermission" type="xs:boolean" use="optional" />
  </xs:complexType>
</xs:element>
