Once the base of the tutorial application is completed, you can extend it with Print Preview and Printing support using the following steps:

1. First, you need to add references to the System.Windows.Controls Assembly.

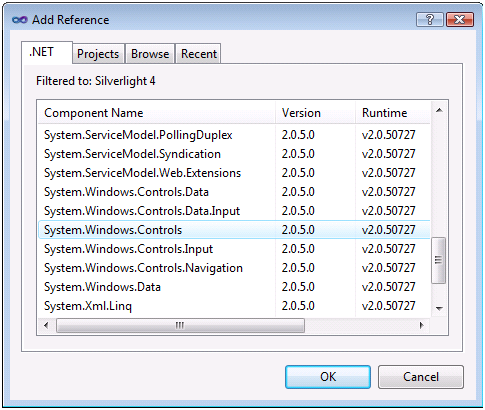

   1. In the Solution Explorer, right-click on References, and choose Add Reference.
   2. Choose the .NET tab, select System.Windows.Controls assembly, and click OK.

   You should now have this assembly listed under References in the Solution Explorer.


2. Add a StackPanel element with horizontal orientation into the grid, and move buttonOpen and loadText elements inside it. Now your XAML should look like this:


   XAML	Copy Code
   <StackPanel Orientation="Horizontal" Grid.Row="0"> <Button Content="Open" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonOpen"/> <TextBox Height="25" Margin="116,4,8,4" VerticalAlignment="Bottom" Text="Please wait while license is retrieved..." x:Name="loadText"/> </StackPanel>

3. After the 'TextBox' element, add the following lines:


   XAML	Copy Code
   <Button Content="Print preview" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonPrintPreview" Click="buttonPrintPreview_Click" />

4. Review your XAML code. It should look like the following:


   XAML

   Copy Code

   <UserControl x:Class="SilverlightTutorial.Page" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:IGWC="clr-namespace:ImageGear.Windows.Controls;assembly=ImageGear20.Windows.Controls" Width="800" Height="600" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"> <Grid x:Name="LayoutRoot" Background="White"> <Grid.RowDefinitions> <RowDefinition Height="auto"/> <RowDefinition Height="*"/> </Grid.RowDefinitions> <StackPanel Orientation="Horizontal" Grid.Row="0"> <Button Content="Open" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonOpen"/> <TextBox Height="25" Margin="116,4,8,4" VerticalAlignment="Bottom" Text="Please wait while license is retrieved..." x:Name="loadText"/> <Button Content="Print preview" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonPrintPreview" Click="buttonPrintPreview_Click" /> </StackPanel> <IGWC:PageView Grid.Row="1" x:Name="pageView"/> </Grid> </UserControl>

   In Design View, you should see this:



5. Open MainPage.xaml.cs and add the following using statements at the top:


   C#	Copy Code
   using System.Windows.Printing; using ImageGear.Printing;

6. Add the following handler for the "Print Preview" button:


   C#

   Copy Code

   private void buttonPrintPreview_Click(object sender, RoutedEventArgs e) { ImGearPage currentPage = pageView.Display.Page; // Create a document for the current page ImGearDocument document = currentPage.Document; if (document == null) { document = new ImGearDocument(); document.Pages.Add(currentPage); } PrintPreviewWindow printPreview = new PrintPreviewWindow(); // Initialize paper size to Letter (in WPF units) PagePrintSettings pageSettings = new PagePrintSettings(); pageSettings.PaperSize = new Size(8.5 * 96, 11 * 96); printPreview.ImportPageSettings(pageSettings); printPreview.Document = document; printPreview.Show(); }

7. The sample is now complete. Right-click SilverlighttutorialTestPage.html in the Solution Explorer and set it as the start up project, then press F5 to launch the sample.
