Once the base of the tutorial application is completed, you can extend it with Print Preview and Printing support using the following steps:
- First, you need to add references to the System.Windows.Controls Assembly.

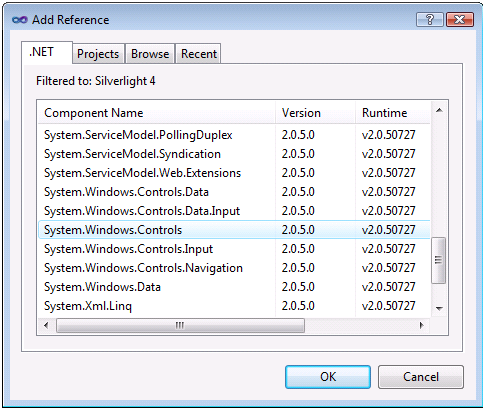

- In the Solution Explorer, right-click on References, and choose Add Reference.
- Choose the .NET tab, select System.Windows.Controls assembly, and click OK.
You should now have this assembly listed under References in the Solution Explorer.
- Add a StackPanel element with horizontal orientation into the grid, and move buttonOpen and loadText elements inside it. Now your XAML should look like this:
XAML Copy Code
<StackPanel Orientation="Horizontal" Grid.Row="0"> <Button Content="Open" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonOpen"/> <TextBox Height="25" Margin="116,4,8,4" VerticalAlignment="Bottom" Text="Please wait while license is retrieved..." x:Name="loadText"/> </StackPanel>
- After the 'TextBox' element, add the following lines:
XAML Copy Code
<Button Content="Print preview" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonPrintPreview" Click="buttonPrintPreview_Click" />
- Review your XAML code. It should look like the following:
XAML Copy Code
<UserControl x:Class="SilverlightTutorial.Page" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:IGWC="clr-namespace:ImageGear.Windows.Controls;assembly=ImageGear20.Windows.Controls" Width="800" Height="600" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"> <Grid x:Name="LayoutRoot" Background="White"> <Grid.RowDefinitions> <RowDefinition Height="auto"/> <RowDefinition Height="*"/> </Grid.RowDefinitions> <StackPanel Orientation="Horizontal" Grid.Row="0"> <Button Content="Open" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonOpen"/> <TextBox Height="25" Margin="116,4,8,4" VerticalAlignment="Bottom" Text="Please wait while license is retrieved..." x:Name="loadText"/> <Button Content="Print preview" Width="100" Margin="8,4,8,4" HorizontalAlignment="Left" x:Name="buttonPrintPreview" Click="buttonPrintPreview_Click" /> </StackPanel> <IGWC:PageView Grid.Row="1" x:Name="pageView"/> </Grid> </UserControl>
In Design View, you should see this:
- Open MainPage.xaml.cs and add the following using statements at the top:
C# Copy Code
using System.Windows.Printing; using ImageGear.Printing;
- Add the following handler for the "Print Preview" button:
C# Copy Code
private void buttonPrintPreview_Click(object sender, RoutedEventArgs e) { ImGearPage currentPage = pageView.Display.Page; // Create a document for the current page ImGearDocument document = currentPage.Document; if (document == null) { document = new ImGearDocument(); document.Pages.Add(currentPage); } PrintPreviewWindow printPreview = new PrintPreviewWindow(); // Initialize paper size to Letter (in WPF units) PagePrintSettings pageSettings = new PagePrintSettings(); pageSettings.PaperSize = new Size(8.5 * 96, 11 * 96); printPreview.ImportPageSettings(pageSettings); printPreview.Document = document; printPreview.Show(); }
- The sample is now complete. Right-click SilverlighttutorialTestPage.html in the Solution Explorer and set it as the start up project, then press F5 to launch the sample.
