ImageGear for .NET
Using ImageGear.Web.Isis Namespace
Send Feedback
ImageGear for .NET User Guide > Using ImageGear for .NET > Using ImageGear.Web.Isis Namespace

Glossary Item Box

The ImageGear.Web.Isis API provides functionality for obtaining an ImGearPage or ImGearDocument from an ISIS or TWAIN compliant device in a web-based application running in a browser. TWAIN compliant devices can be accessed through the ISIS PixTwain driver that is included with the Captiva Cloud Runtime.

To access the ImageGear .NET ISIS API, you must reference the ImageGear.Web.UI.Isis.js file in the ImageGear.Web assembly as demonstrated below:

HTMLExample Copy Code
<body>
    <form id="form1" runat="server">
    <asp:ScriptManager ID="ScriptManager1" runat="server">
        <Scripts>
            <asp:ScriptReference Assembly="ImageGear20.Web" Name="ImageGear.Web.UI.Isis.js" />
        </Scripts>
    </asp:ScriptManager>
…

Class Architecture

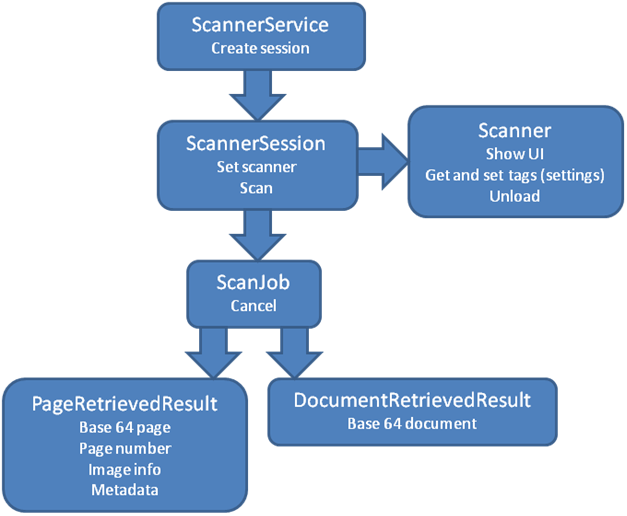

The class architecture for the ImageGear ISIS functionality is shown in the diagram below:

The following topics are discussed in this section:
