Property	Description
Language	The language character sets allow FormAssist to recognize text based on pre-defined European languages. Choose the appropriate language as needed. If a language is not chosen, English, the default language is used. ICR tab with Language dropdown
Character Set	The SmartZone ICR engine used by FormAssist provides the ability to recognize text based on pre-defined character sets. Choosing the appropriate character set will improve recognition results. The following character sets are available for use in the drop down within FormAssist ICR property settings in the Properties View: ICR tab with Character Set dropdown   At the bottom of the Character Set drop down is the option to select Custom... (see image above). The Language choice can limit the set of characters from which you can select for a custom character set. To choose from all possible characters, set the Language to “Western European”. Select this option and then click on the Edit button, a custom character window displays (see image below). This allows you to customize the characters you want FormAssist to recognize by selecting or clearing individual characters provided on the panel. The image below is an example of the English custom character editor. Edit Custom Character Set window

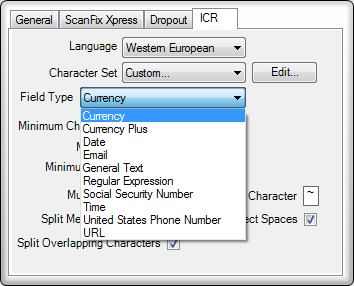

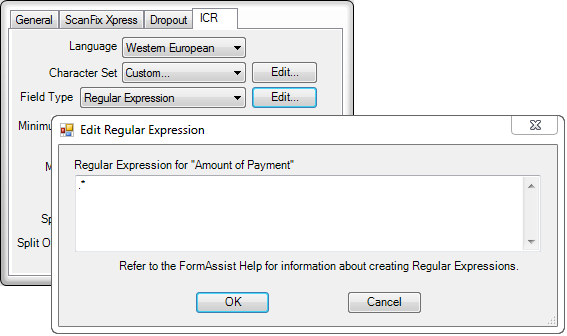

Field Type	The expected field type of the text to be recognized. ICR tab with Field Type dropdown   In the middle of the Field Type drop down is the option to select Regular Expression. By selecting this option and then clicking on the Edit button (which is only displayed when Regular Expression is selected), a regular expression editing dialog displays. This allows you to set a regular expression that SmartZone will apply to the field data after recognition. See the SmartZone ICR help for details about supported regular expression strings. The image below is an example of a regular expression editing screen. Edit Regular Expression dialog
Minimum Character Confidence	This value determines if the character is rejected in the text output. Adjust this value based on the results for better accuracy.
Maximum Blob Size	This value determines the maximum size in pixels for a blob to automatically be classified as noise. A blob is an isolated connected group of pixels. By distinguishing blobs from actual characters, recognition accuracy can be improved.
Minimum Text Line Height	This value determines the allowable minimum text line height in pixels. This helps prevent noise from being returned as a text line within the result.
Multiple Text Lines	Check this setting to analyze multiple text lines. If there is only one text line, better accuracy and speed is achieved if you leave this setting unchecked.
Split Merged Characters	Checking this setting determines if cutting of touching characters should be performed during processing. The SmartZone ICR engine used by FormAssist can automatically separate the blobs of touching characters if checked. Keep this setting unchecked if you know that the blobs of the characters do not touch each other for better accuracy and speed.
Split Overlapping Characters	Check this setting to automatically create segmentation of overlapping blobs into multiple characters. The SmartZone ICR engine used by FormAssist can automatically separate the blobs into a collection of characters. Better speed and accuracy are achieved if you know that there are not overlapping characters and keep this setting unchecked.
Rejection Character	This property allows you to control which character is used in the output text when recognition cannot determine a value.
Detect Spaces	Check this setting to automatically determine spaces during processing.
