Integrating the HTML5 Viewer with your JSP Web Server

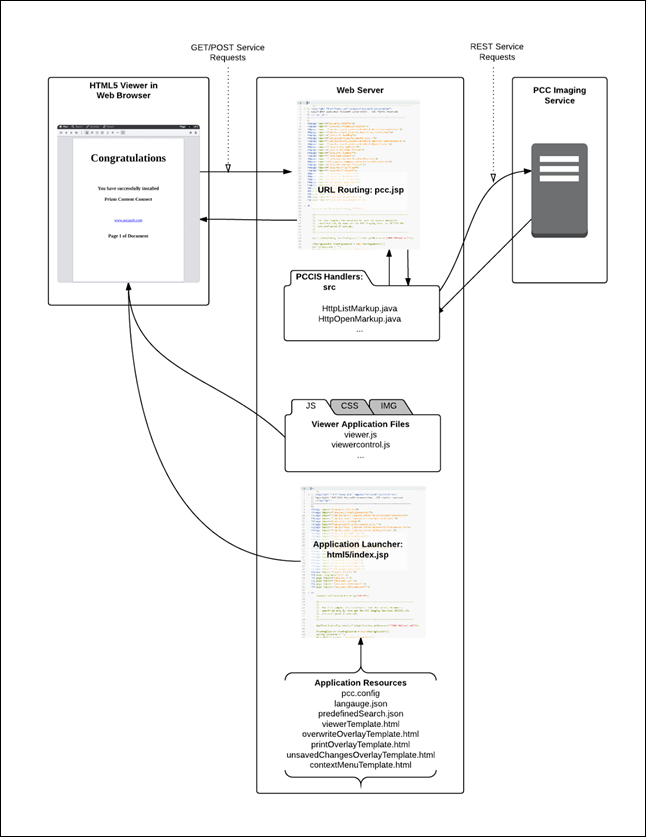

Figure 1. Application Overview of the default JSP sample setup:

First Steps

Before integrating with your application environment, a helpful first step is to install the provided JSP sample. With a working sample, you will have a proof-of-concept that demonstrates the functionality of the Prizm Services working together with your web server. To get started with setting up a JSP sample, refer to How to Configure JSP Samples.

Note that JDK 1.7 and JRE 1.7+ are required.

Once installed the sample will load in the following order (refer to Figure 1.):

  1. index.jsp is called on the web server by a request initiated by a web browser.
  2. index.jsp executes and bundles together various application resources like user interface templates, language files, and predefined search queries.
  3. Once the HTML page generated by index.jsp is loaded in to the web browser, the viewer application files (javascript, css and image resources) are then loaded from the web server.
  4. Upon receiving the files in the web browser, the viewer application starts and requests a document for display from the web server. This request is routed through pcc.jsp as are all other subsequent service requests. pcc.jsp acts as a router between the client viewer app and the Prizm Services. Going back to our example, pcc.jsp will request the document from Prizm Services and will send the response back to the viewer app.
  5. At this stage, the viewer is fully loaded and displaying a document. It will now respond to user interaction by processing it locally in the browser or, if not possible, by sending service requests to the web server which can then forward them on to Prizm Services.

Integration

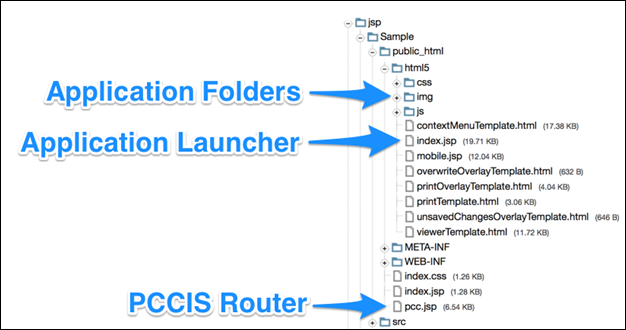

Figure 2. JSP Sample Directory Structure:



The Front End

As you see from the Figure 1., the HTML5 viewer loads like most modern web applications: a server script is called which then presents an HTML page to the browser. The browser loads the page’s linked JavaScript and CSS files which triggers the front-end web application to initiate. Because the technologies are standard web ones, you can take the js, img, and css folders provided by the sample and plug them into your existing web platform. The sample places the JavaScript and CSS folders at the same directory level as the application launching index.jsp. However, the location of these resources can be changed by following the directions in Using a Custom Resource Path.

Also, for details on embedding the viewer on existing pages, refer to Embedding the Viewer.

The Back End

An important point to make is that while the web server and Prizm Services can be installed on the same machine, they do not have to be. Because the web server communicates with Prizm Services over RESTful network calls, Prizm Services can be located anywhere that the web server can reach it via that URL. In the sample, the URL is defined in the pcc.config file with several parameters prefixed with WebService:

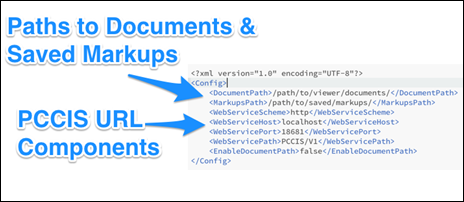

Figure 3. Excerpt from pcc.config:



Also in that file are two important parameters that define the document location and the saved markup record location (see Table-1 below). As implemented in the JSP sample, the document path is the directory on the web server that holds the original document in its native format. In addition, the Viewer allows annotations to be saved and loaded again at a later time.

The location of the saved annotation records is defined by the LinuxMarkupsPath parameter in the "WEB-INF\web.xml" file. It’s highly likely that these two parameters will need to be updated for your server environment and they should always be reviewed after installing the sample. It should be noted that loading a document from the file system into Prizm Services is just one approach. As an example, the document could alternatively originate from a database or URL. However, to keep the sample straightforward, the original document resides on the local file system.

Table-1 - Document & Markup Locations

Parameter Name Operating System
DocumentPath Windows
LinuxDocumentPath Linux
MarkupsPath Windows
LinuxMarkupsPath Linux

Another important file is pcc.jsp. This acts as a router between the front end Viewer and the Prizm Services. So pcc.jsp must be able to receive and respond to requests from the viewer. The sample places pcc.jsp one directory above the application launching index.jsp and informs the viewer of its location via the imageHandlerUrl parameter in index.jsp:

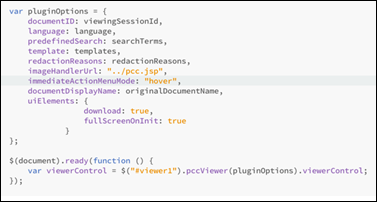

Figure 4. Example of imageHandlerUrl in plugin options:



So, you can easily change the location of pcc.jsp and then adjust the imageHandlerUrl parameter to match. Just be aware that pcc.jsp works together with the classes found in the src folder.
